PTO3632Light vehicle series of automotive power take

PTO3632JN PTO3632JW PTO3632QN PTO3632QW

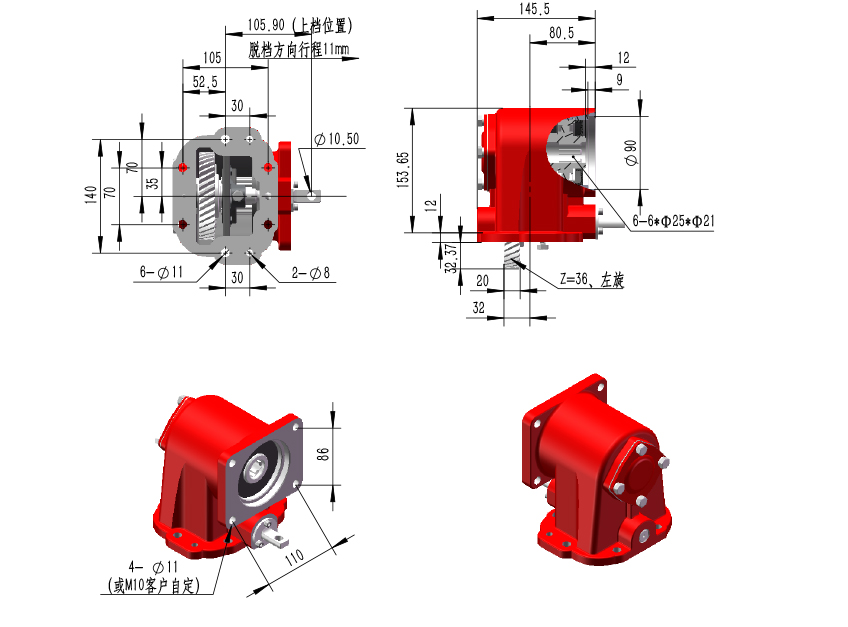

Shape and installation dimensions

Technical Parameters
Model	PTO3632JN	Output Shaft Rotation	Contrary To Engine Rotation
Speed Ratio	1.385	Output Form	Rectangular Connection Flange
Output Torque（N.m）	130	Output Shaft Head Form	Internal Splines
Manipulation Mode	Manual	Applicable Models	BJ1041
Number Of Teeth Engaged	z=36、Levorotatory	With Gearbox	CAS5-20、CAS5-25

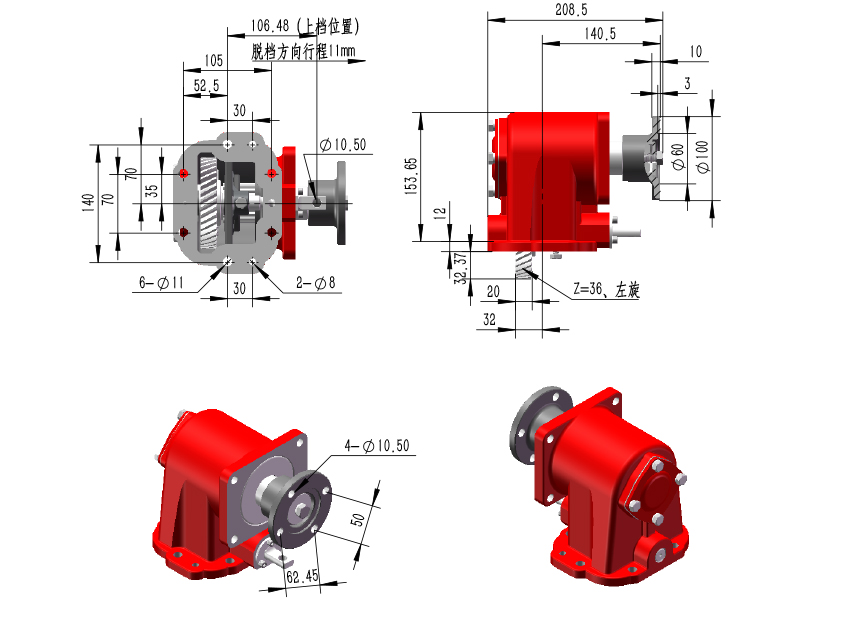

Shape and installation dimensions

Technical Parameters
Model	PTO3632JW	Output Shaft Rotation	Contrary To Engine Rotation
Speed Ratio	1.385	Output Form	Round To Disk
Output Torque（N.m）	130	Output Shaft Head Form	Flat Key
Manipulation Mode	Manual	Applicable Models	BJ1041
Number Of Teeth Engaged	z=36、Levorotatory	With Gearbox	CAS5-20、CAS5-25

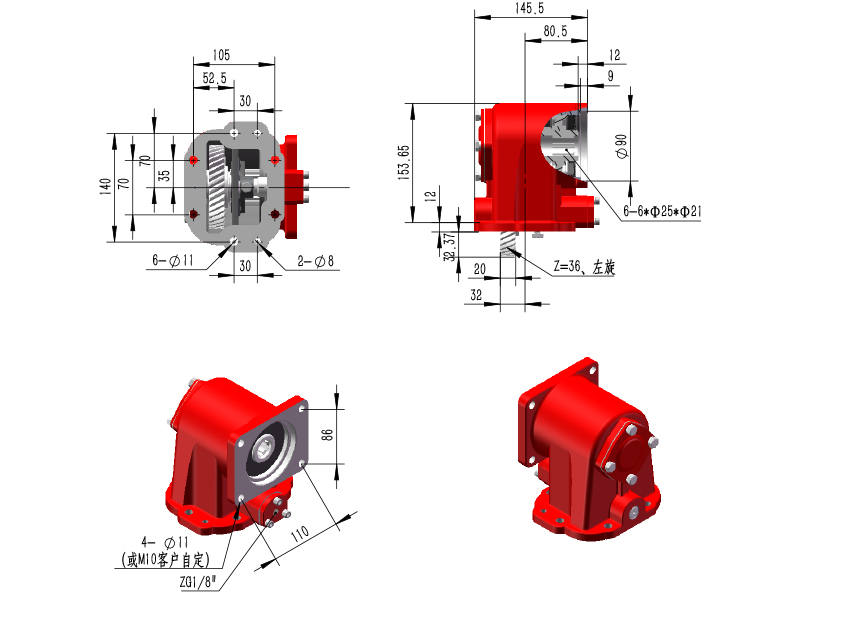

Shape and installation dimensions

Technical Parameters
Model	PTO3632QN	Output Shaft Rotation	Contrary To Engine Rotation
Speed Ratio	1.385	Output Form	Rectangular Connection Flange
Output Torque（N.m）	130	Output Shaft Head Form	Internal Splines
Manipulation Mode	Pneumatic	Applicable Models	BJ1041
Number Of Teeth Engaged	z=36、Levorotatory	With Gearbox	CAS5-20、CAS5-25

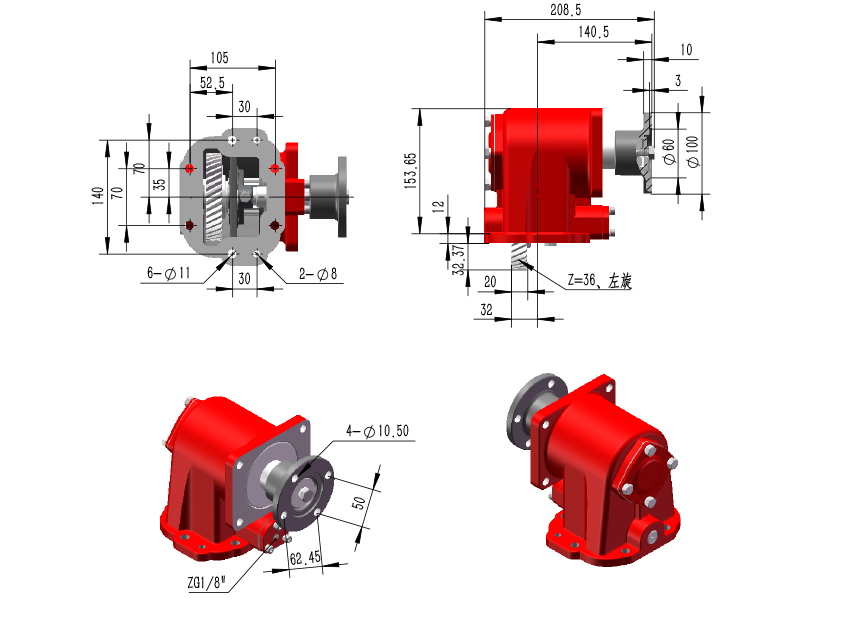

Shape and installation dimensions

Technical Parameters
Model	PTO3632QW	Output Shaft Rotation	Contrary To Engine Rotation
Speed Ratio	1.385	Output Form	Round To Disk
Output Torque（N.m）	130	Output Shaft Head Form	Flat Key
Manipulation Mode	Pneumatic	Applicable Models	BJ1041
Number Of Teeth Engaged	z=36、Levorotatory	With Gearbox	CAS5-20、CAS5-25
